Chalco aluminum is focus on the development and production of high end aluminum alloy materials, and could provide the customers with various product solutions. Chalco Aluminum has ability to produce super wide aluminum sheets coil strip, such as 6111 6N01 aluminum coil strip, which is used for making mail van roof, and side skin....
Chalco aluminum is focus on the development and production of high end aluminum alloy materials, and could provide the customers with various product solutions. Chalco Aluminum has ability to produce super wide aluminum sheets coil strip, such as 6111 6N01 aluminum coil strip, which is used for making mail van roof, and side skin.
Alloy: 6111
Temper: T4P
Thickness: 0.7--2.0
Width: 1000--2650mm
Alloy: 6N01
Temper: T6
Thickness: 0.8--1.0
Width: 2000--2600mm
Features of 6111 6N01 aluminum coil strip:
- With maximum width 2650mm
- Annealed by continuous heat treatment line, and the properties differences of the same coil and between coils are slight.
- Precision dimension and excellent flatness.
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Zn |
Cr |
Ti |
Al |
|
6111 |
0.60-1.1 |
≤0.40 |
0.50-0.90 |
0.10-0.45 |
0.50-1.0 |
≤0.15 |
≤0.10 |
≤0.10 |
Remaining |
|
6N01 |
0.6-0.9 |
0.2-0.3 |
0.4-0.5 |
0.2-0.4 |
0.8-1.1 |
0.02-0.15 |
0.05-0.2 |
0.01-0.03 |
|
Mechanical property:
|
Temper |
Tensile strength MPa |
Yield strength MPa |
Elongation% |
|
6111 T4P |
115--170 |
≥250 |
≥20 |
|
6N01 T6 |
≥300 |
≥340 |
≥6 |
6111 6N01 aluminum coil strip is used for covering mail van, trolley bus skin, full aluminum coach bus roof, aluminum roof skin, aluminum side skin etc.
|

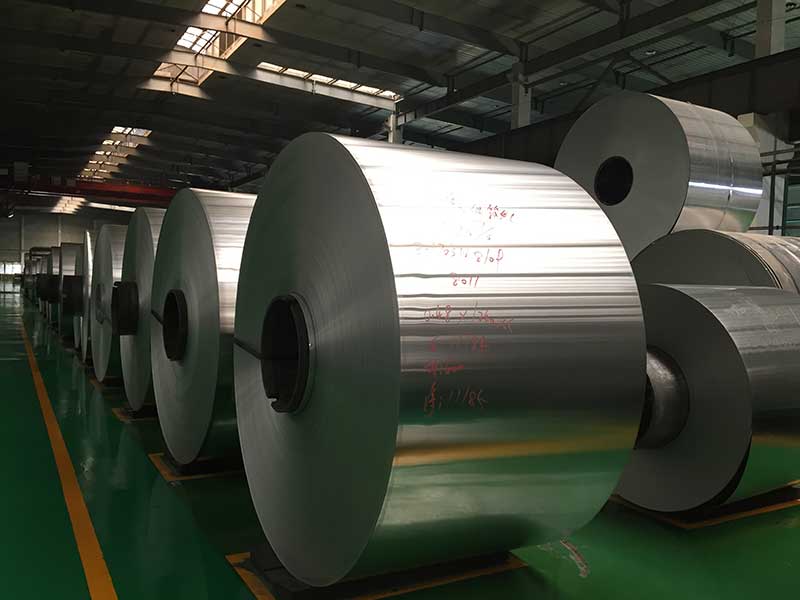

2650mm super width coil |
|
|
|
Aluminum strip |
  |
|
Aluminum checkered coil strip |
 |
|
Aluminum stucco coil strip |
 |
|
Aluminum coil-Eye to wall packing |
 |
|
Aluminum coil-Eye to sky packing |
 |
